Chinese manufacturer made 50L Home beer microbrewery equipment hot sell in mini bar

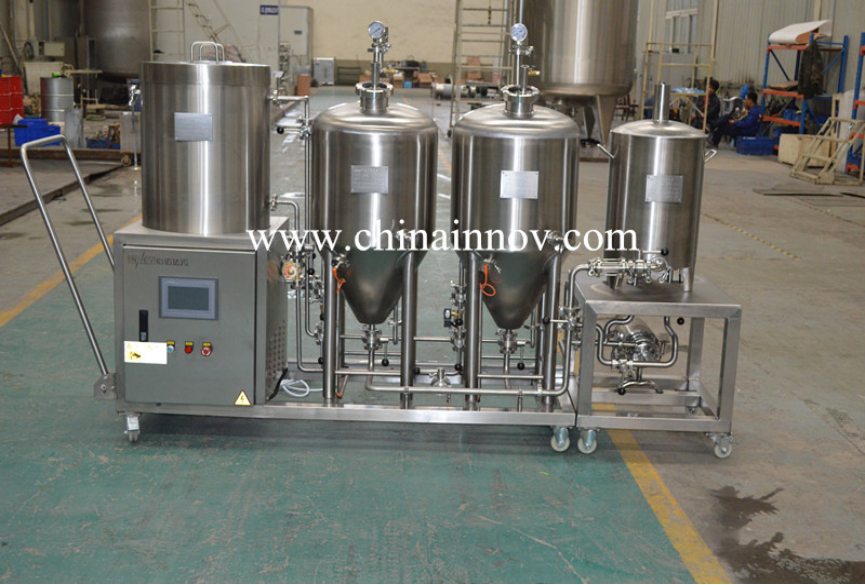

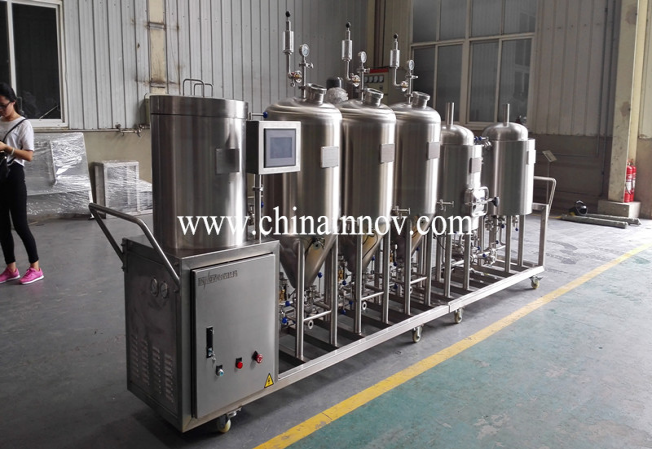

The complete set of 50L home beer brewing equipment composes the following parts:

1.Mashing system,mash&lauter tank,boiling&whirlpool tank.mash support

2.Fermentation system,fermenters,effective volume 50L

3.Cooling system,equipped with a powerful chiller and alcohol water tank

4.Electric system,PLC and touch screen control,switchboard

5.Pipeline fittings

1、Inner shell is made of SUS304,thickness is 2.5mm，Cladding thickness is 1.5mm                                                                          2、Electric heating, 1-1.5℃/min,elliptical manhole, butterfly head

3、Heat-resisting polyurethane foam is used for keeping warm,thickness is 80mm

4、Full capacity of lauter part is 60L

5、Heat-resisting polyurethane foam is used for keeping warm for lauter part,thickness is 80mm                                                    6、Feed on the top of the filter, inlet and flush filter on the same level.The upper 2 root into the tube, one for reflow and wash the worse.Internal bad washing device adopts double umbrella flow plate form, a second washing pipe, used to wash lauter tank, washing ball confirm with  ISO standard.

7、Upper lauter with oval endoscopic manhole side out of the discharging mouth;Butterfly tank bottom, lauter out main belt audition and health sampling valve, sight glasses level installation;And the suction lauter,natural lauter can realize , natural filtering can synchronize when washing.                                                                                                                                                8、Filter plate: milling.Material:SUS304, opening rate is about 10%;Surface light, smooth;Local can open, convenient cleaning, the use of deformation;Filter plate and the distance between the bottom of the pot between 2 to 5 cm, at the bottom of the tank with the cleaning device, uniform not less than three.

9、The thermometer meter is digital display.The precision of platinum thermal resistor is ±0.3℃ .The temperature range is from 1℃ to 120℃

10、Equipped with cleaning tube, wash ball confirm with ISO standard.

1、Full capacity of  is 95l,empty capacity is higher than 40%

2、The inner shell is made of SUS304, thickness is 2.5mm,The cladding thickness is 1.5mm.

3、Polyurethane foam is used to keep warm for the filter tank.The thickness of keeping warm material is 75mm

4、Steam outlet pipeline on the top which diameter is ￠76 for the steam discharging.the steam outlet pipeline will equip with condensed water collecting device  and the outlet pipeline  should be embedded in the thermal insulation layer

5、Counterclockwise tangential feeding when depositing, feeding port under the liquid level 1/3;With liquid level tube, with a breathing hole, side installation fast loading manhole.The bottom shape and material discharging to insure the effect of depositing as well as to improve the operation convenience, reduce the loss of material liquid.Hanging heavy discharging pipe and drainage pipe between a bypass.With cleaning tube, embedded in the thermal insulation layer.

6、Inner Surface welds polishing process.The apperance is beautiful.Pipeline layout,opening meet the requirement of  operation, installation and visiting.

7、Whirlpool tank equipped with cleaning tube, wash ball confirm with ISO standard.

1、The inner shell of tank material is SUS304, national standard thickness is 2.5 mm; cladding material is SUS304,thickness is 1.5 mm.

2、Dribbling is used to cool,material is SUS304, thickness is 1.5 mm, withstand voltage is 3 bar , cylindrical  cooling temperature area is about 40% of the cylinder surface area , the cones cooling area is about 50% of the surface of the cones.                            3、Polyurethane foam is used to keep warm,the thickness is 80 mm.

4、Withstand voltage of tank is 2.5bar

5、60 °hypocone is compressive strength design.

6、Empty capacity is 20%.

7、Internal roughness is less than 0.4 um , no distortion, no scratches, weld highly polishing                                                            8、The upper installation lamp lens.

9、The tank equips with temperature sensor,sample valve,machanical valve.Discharge outlet is at the bottom, beer outlet valve is at the pyramis.
10、Discharge pipe is at the bottom ,the diameter is Ø25。

WEMAC beer brewing equipment was established in 1958, WEMAC beer brewing equipment is one of the top brewing equipment manufacturs and factory, including 70 senior technologists. We have 530 employees and workers in total. WEMAC provides water treatment equipment for above 60% medicine factories in Chinese local market, totally 3000+ factories and companies.
WEMAC also provides high quality beer brewing equipment, beer brewery technical guidance, personnel training, technological formulation, beer new technology research and development.
WEMAC is a professional beer fermentation equipment manufacturer in China. We produce different volumes of beer fermenters and related beer brewing equipment. Our beer fermenters range in capacity from 30 liters to 50 tons. We can meet the needs of all customers, from small restaurants, breweries to large craft breweries and industrial breweries. We also make Mini brewing equipment for families and individuals. We take the high quality 304 stainless steel as the main raw material. We insist on using all materials to confirm the thick tank wall and heavy equipment weight. This makes our beer fermentation equipment more stable and durable than other suppliers. established in 1958 ，with more than 60 years of tank manufacturing history, our manufacturing capacity and standards are in the leading position in the local market. We strive to create better equipment for our customers and become a better beer fermenter manufacturer for customers to choose from.
