China 1000l beer brewing equipment factory

China 1000l beer brewing equipment manufacturers

This 1000l beer brewing equipment is for an India buyer.

We received his inquire from network. He said he wanted to open a microbrewery beer plant and didn’t have any equipment. He wanted the complete brewing equipment from us. Our beer experts suggested 1000l brewing equipment according to his estimated beer production volume and his working site condition. Then our engineer team designed the process drawing and offered the detailed configuration and technical data of all the equipment needed. The Indian buyer was satisfied with the whole plan and asked for some small modification. So the whole equipment plan was settled. We arranged production and delivery of the 1000l beer brewing system. After he received the equipment and installed them, he tested for several weeks in beer production. The beer system was working well and made good taste beer. He was very pleased and told us he was so happy and lucky. He thanked us for all the help we offered in design, manufacture and delivery. He also told us that his new brewery was in preparation and he wanted to buy another 1000l beer brewing equipment from us. We were also very happy that we really helped customers to reach their aim and develop better.

1000l beer brewing equipment mash kettle technical data:

1. inner tank material SUS304，3mm，outer tank 2mm;size：D=1460mm，H=2570mm.

2. electrical heating 60kw，max. pressure 3bar, heating fulfill temperature rising 1-1.5 degree/min. tank and bottom individual control

3.heat preservation rock wool solid thickness 80mm

4.blender motor 20r/min，blender device material ss304，blender axle with scale and supporting sleeve at bottom. sealing device equipped on top of tank to prevent steam leakage from axle.

5.top steam discharge funnel ￠159，with condensate water collection device, water discharge pipe embedded in heat preservation layer.

6.temperature sensor -10--150℃，4-20mA signal，L=200mm,50.5 chuck joint,FURUISI brand.

7.inner tank 2B surface, acid and passivation treatment,welding line fine treatment, without concave-convex deformation, outer surface brushing treatment, beautiful appearance, pipes configuration and ports position fulfill operation, installation request.      8.round glass manhole, disc heading.

9.equipped with cleaning pipe, standard washing ball, cleaning pipes DIN32.

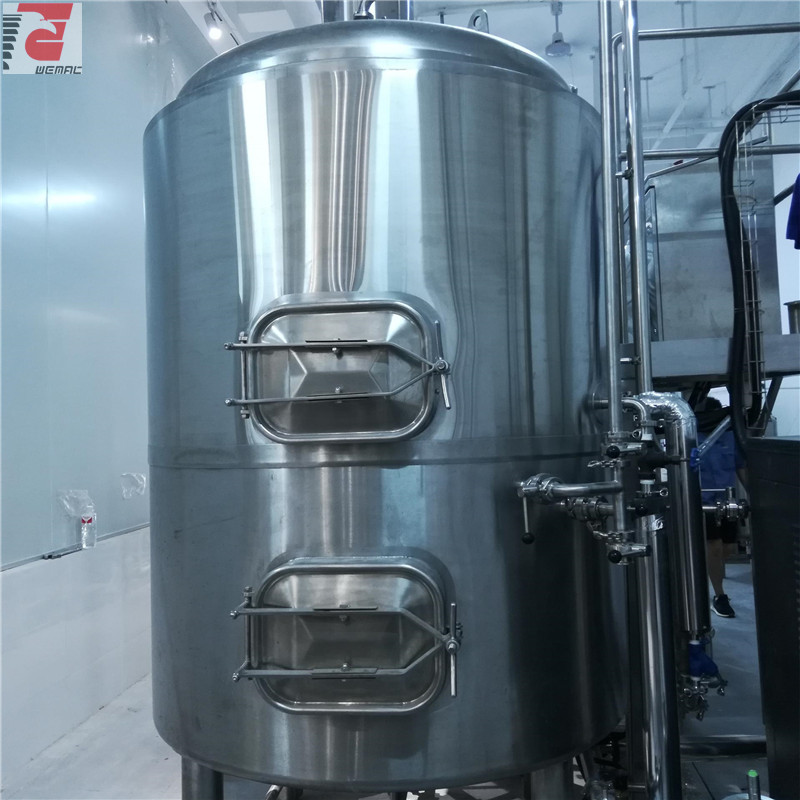

1000l brewing equipment lauter and whirlpool technical data:

1.lauter effective volume 1100L，whirlpool effective volume 1300L.

2.inner tank material SUS304，3mm，outer tank 2mm, size：D=1460mm，H=2570mm.

3.lauter temperature preservation rock wool thickness 80mm.

4.3 feeding pipes on top,1 for backflow, 2 for grain washing. inner grain washing device adjust double umbrella plate style, washing pipes for lauter washing, equipped with standard washing ball DIN32.

5.lauter equpped with top round manhole, side grain discharge port（with sliding plate）, lauter material discharge pipe equipped with sight glass and sanitary sampling valve, sight glass horizontal installation, natural filtration and suction filtration available, natural filtration and grain washing can be at same time.

6. lauter plate：milling. material SUS304，hole rate 8%, surface flat and bright, can be part opened for easy eclasing, without deformation in usage, distance between lauter plate and tank bottom 2-5cm, bottom equipped with cleaning device, above 3 in right position.

7. grain raking device：material ss304, solid installation and supporting, stable rotating, frequency conversion control, raking angle≤15°, inner raking frame fixed on tank body,not bottom, stirring motor and gear covered with ss304 protection shell. motor and gear speed 19r/min, national famous brand.

8. whirlpool anticlockwise tangent material feeding, feeding port positioned at 1/3 position of liquid surface, with liquid level pipe and breathing hole, tank side equipped with quick manhole. bottom shape and material discharge fulfill whirlpool effect and improve easy operation, reduce material liquid loss.

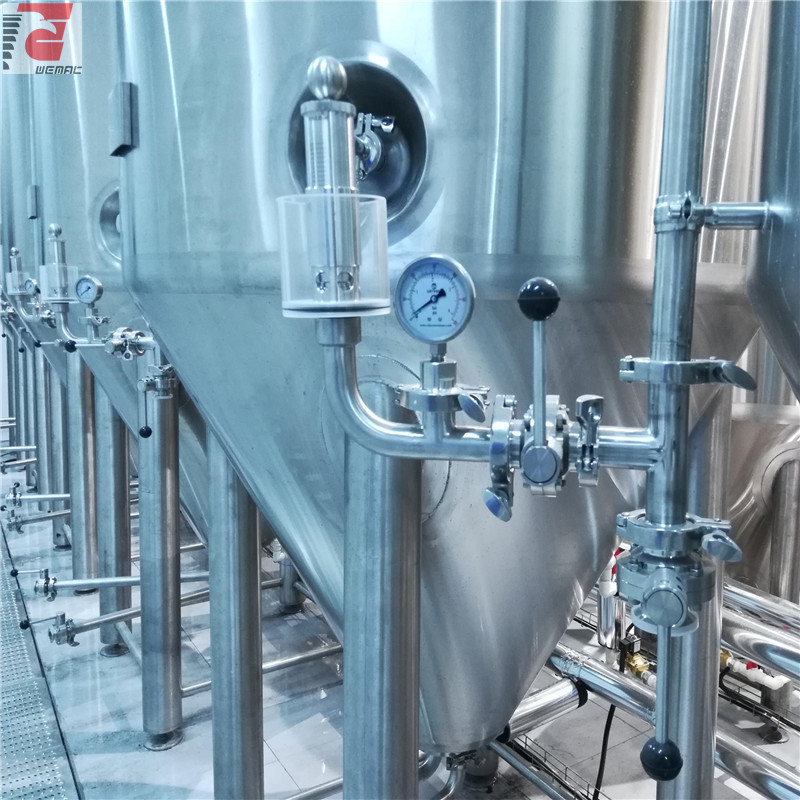

1000l beer equipment fermentation tanks technical data:

1. inner tank material SUS304，3mm, outer tank material SUS304，2mm, size：D=1460mm，H=3550mm.

2. dimple plate jacket, material SUS304,1.5mm. tank body temperature adjustment area is above 40% of total area. conical bottom temperature adjustment area is above 50% of total area.

3.PU foam heat preservation material, thickness 80mm.

4. tank body pressure max.2.5bar.

5. 60°conical bottom pressure resistance design.

6. empty volume 20%, tank cylinder top on same line with washing ball.

7. equipped with washing ball, installation position near tank cylinder and heading welding line. cleaning pipe Ø32.

8. roughness in tank≤0.4um，without deformation, scrach, welding line 2B surface.

9. manhole installed on the top, with positive and negative pressure safety valve, single heading.

10. tank body equipped with temperature sensor,（-10--150℃，4-20mA signal，L=200mm、50.5 chuck joint, FURUISI brand）, sampling valve, bottom waste discharging port, conical bottom with beer outlet valve, hops dry feeding portφ100.

11. bottom waste discharging pipe Ø38.

12. inner tank 2B surface, acid and passive treatment, outer surface brushing treatment, beautiful, pipes layout and ports position fulfill operation, installation request.
