Stainless steel fermenter fermentation vessel beer tanks for sale stainless steel conical tank WEMAC Y032

Stainless steel fermenter fermentation vessel beer tanks for sale stainless steel conical tank WEMAC Y032

Features

1. Specifications from 100L-30000L, can be customized according to customer needs.

2. It is made of imported high quality stainless steel 304 or 316L material.

3. The precision reaches the sanitary standard, the inner wall polishing finish is less than 0.6 micron, and the exterior is polished by stainless steel (can be made into primary color, mirror polished, etc.)

4. Imported polyurethane high-pressure foam insulation, cone bottom shape. The cooling jacket adopts various jacket heat exchange modes such as Maitreya board, arched passage, corrugated passage and the like.

5. A washing and disinfecting pipe, a material pipe, a refrigerant return pipe, and a co2 pipe are connected between the tanks.

All stainless steel pipes in contact with the material piping are hygienic and have internal and external wall finishes to

meet dairy-grade hygiene standards.

6. PLC control system can realize automatic and semi-automatic control to ensure accurate and effective process

 parameters and experimental results.

The CIP cleaning system is equipped with a CIP cleaning system to ensure the reliability of its operation.

The negative pressure valve and the overpressure valve can effectively protect the safety of the fermenter and prevent the implosion and explosion caused by the pressure change of the fermenter.

Monitoring devices such as sight glass, CO2 pipes and pressure sensors can inspect and control the contents of the tank.

The safety of the tank top device should also be considered comprehensively, and its antifreeze protection is also essential.

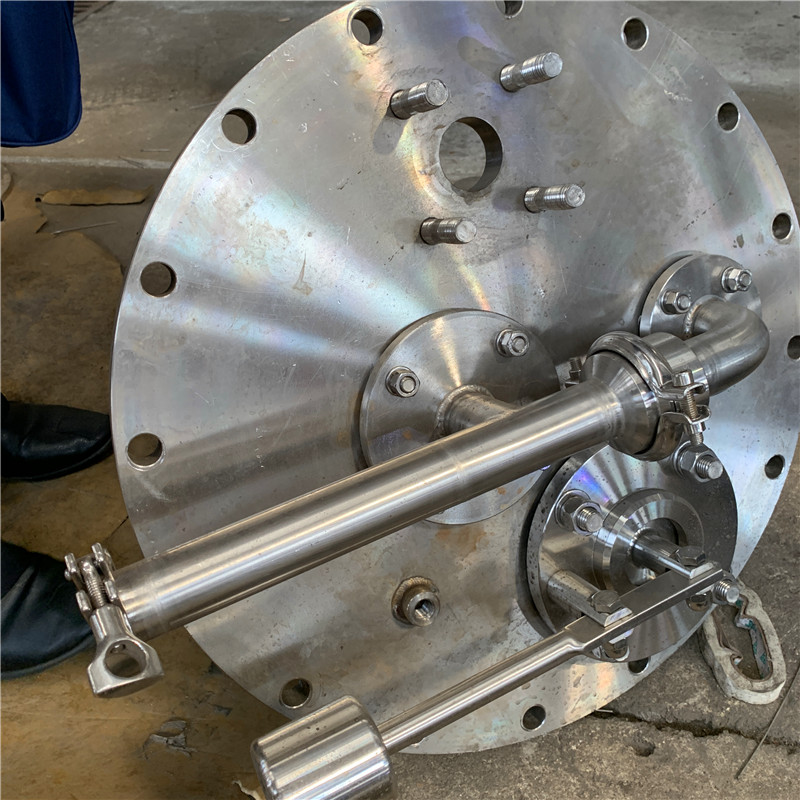

The top of the fermentation tank has a round arch structure. The central opening is used for detachable large-diameter flanges.

The large-diameter flanges are equipped with CO2 and CIP pipes and their connecting parts.

They are also equipped with sight glass, negative pressure valve and Pressure valve and pressure sensor, etc.,

constitute the topping device.

This set of equipment adopts austenitic stainless steel, and the jacket of the cooling jacket is in the form of honeycomb jacket.

 The jacket and the cone bottom are provided with jackets, which can effectively increase the cooling speed,

 and can set different proportions of jackets according to the customer's process requirements. The hot area,

the bottom is a small cone bottom of 60°, designed for fermentation and improvement of beer and breeding yeast;

PU insulation is used for insulation, fully welded stainless steel plate for outer skin, manhole, CIP clear,

thermometer interface, sampling port And other components.
