Build me a beer brewery

Build me a 1500L beer brewery
1500L Micro beer brewery systems is typically applied to breweries that are much smaller than large-scale commercial breweries and are independently owned,but larger than breweries for restaurant,mini beer bars and brewpub etc.,as it distributes beer to local restaurants and bars,parties etc.To open a micro craft beer brewery and get suitable margin from this kind of business model,we suggest to start from 1500L/brew capacity minimum that concerning both the price limitation and expanding capacity in the future. Also 3000L-5000L beer equipment are common to see for a little larger business.

The 1500L micro beer brewery systems is more professionally functional and concerns more details to brew in a more smart way,which can be simple to decreasing the factors that may affect the brewing efficiency or craft beer flavors.

Most basic brewing process for complete 1500L micro craft beer brewery for sale:
Milling, mashing, lautering, boiling, whirlpool, fermentation, maturing, cooling, temperature controlling, cleaning, beer filling

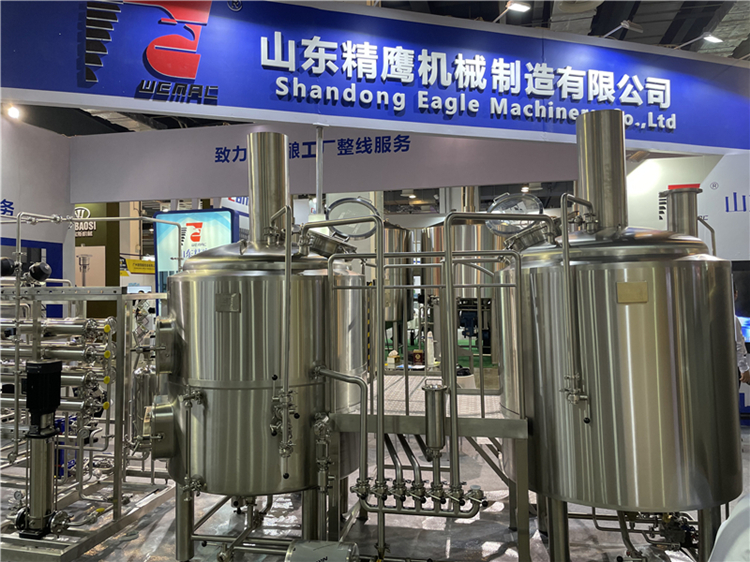

Build me a 1500L two vessels micro craft beer brewery

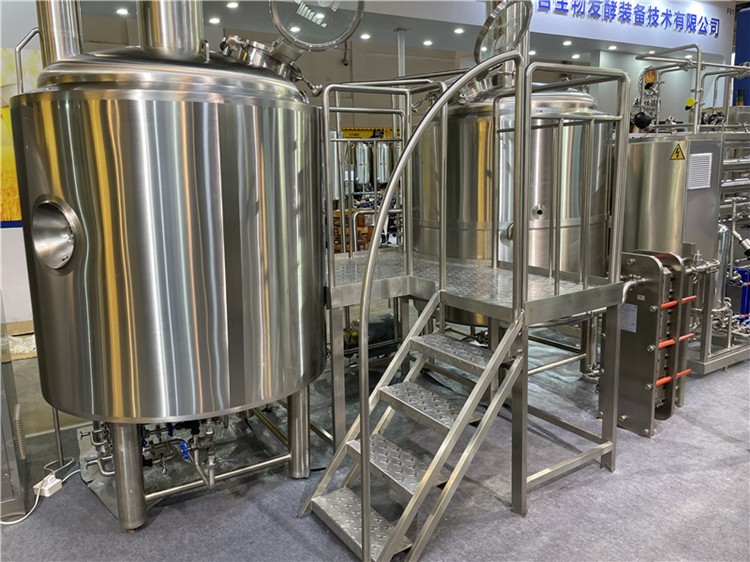

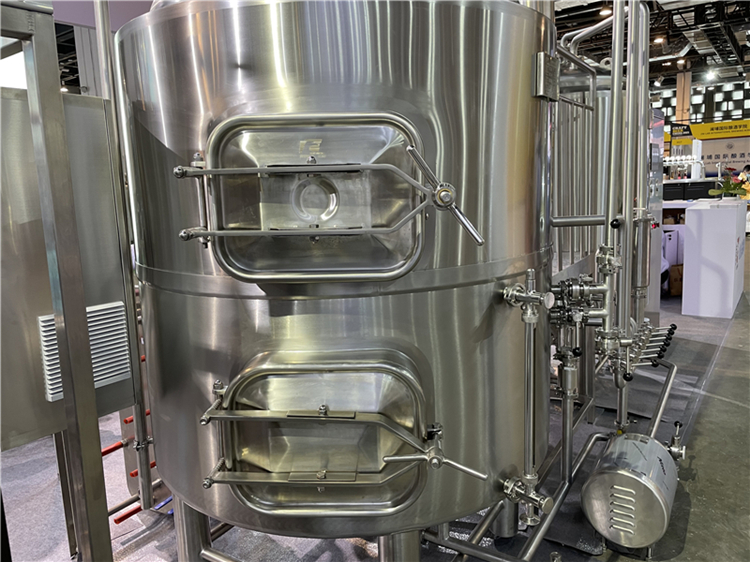

The picture shows the two vessels craft beer brewhouse,the reason why it is called two vessels is that,the mash tun and kettle tun are in the same tank,the same tank with the function of mashing and boiling.

The other vessel is the combination of lauter tun and whirlpool tun,the bottom of the two tanks are divided by a flase bottom,it plays an role of filtering.

mash/kettle tun and lauter/whirlpool tun are all equipped with stirrer in the top,which makes it more uniform when mashing and boiling when using the 1500L beer brewery.

The two tanks are supported by a stainless steel platform, and the bottom of the steel plate is specially treated with anti-skid patterns.

Plate heat exchanger in 1500L two vessels micro craft beer brewery

The heat exchange area is about 100 square meters. One section is connected to hot wort and one section is connected to cold water or tap water, which can effectively reduce the wort temperature from 80℃ to 15℃, providing the first section of cooling, and the wort after cooling is pumped in The fermentation tank realizes secondary cooling under the action of the refrigeration jacket of the fermentation tank.

Side spend grain square spot,Flange threaded connection,there is a rubber gasket inside,no dead angle remains.

when the mashing and grain rinsing is finished,using the rake to remove the spent grain from the false bottom,The spent grain can be used for animal feed and fertilizer recycling,each batch of 1500L produces about 500kg.

Build me a 1500L beer brewery-fermentation tank

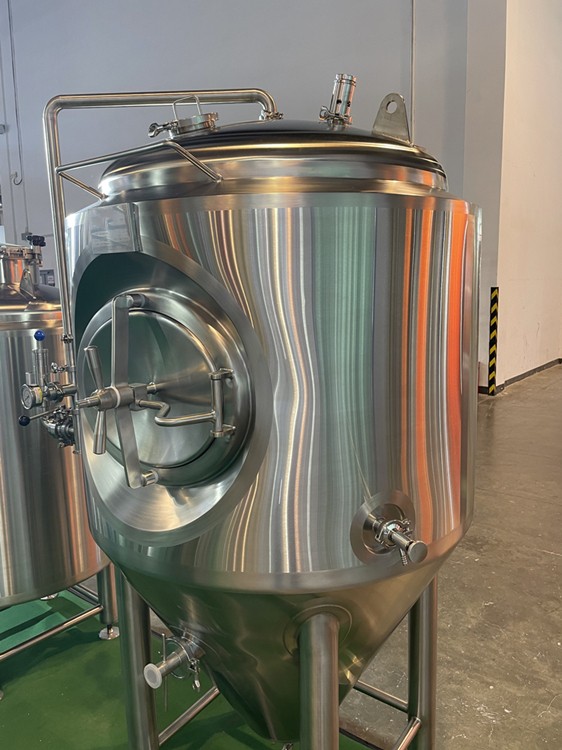

Fermentation tank:1500L/3000L are optional,due to the brewing batches of per day(one or two batch)

25% head space,Jacketed and insulated,Conical bottom,Pressure valve,relief valveCO2 relief valve,Coolant inlet and outlet

Sample valve,Side manway,Top, Dry Hopping Port,CIP connections,Wort inlet and yeast outlet,Racking arm

Temperature and pressure gauges.

The volume of the fermenter is usually selected according to the daily production batch, according to the rules of entering the wort on the same day after brewing. For the 1500L brewing system, the volume of 1500L-3000L can be selected according to 1-2 batches per day.

Build me a 1500L beer brewery-Optional parts

There are some other optional parts in beer brewery that we can offer,like Beer filter, Keg filling system, Bottle filling system

Steam boiler, Water filter, Kegs, Malt transfer (grain auger),Customized requirement acceptable.

FAQ

What is a 1500L beer brewery?

A 1500L beer brewery refers to a brewing system with a capacity of 1500 liters, suitable for producing craft beer on a small to medium scale. It includes various vessels and equipment required for the brewing process, allowing brewers to create high-quality beer batches.

What are the essential components of a 1500L beer brewery?

A typical 1500L beer brewery includes several key components:

Mash Tun: Used for mashing the malt and water to convert starches into fermentable sugars.

Lauter Tun: Used for separating the liquid wort from the solid grain after mashing.

Brew Kettle: Used for boiling the wort with hops, creating bitterness, flavor, and aroma.

Whirlpool: Used to separate the hop and protein particles from the boiled wort.

Fermentation Tanks: Used for fermenting the wort into beer with the help of yeast.

Cooling System: Used for cooling down the wort after boiling and maintaining fermentation temperatures.

Is a 1500L brewery suitable for a startup or small craft brewery?

Yes, a 1500L brewery is often a great choice for startups or small craft breweries. It provides a good balance between production capacity and initial investment. With this size, breweries can meet the demands of their local market and gradually expand if needed.

What are the benefits of a 1500L beer brewery?

The benefits of a 1500L beer brewery include:

Moderate production capacity: It allows for efficient production without overwhelming the brewer with excessive volumes.

Flexibility: Breweries can experiment with different beer styles and recipes on a smaller scale.

Cost-effectiveness: It represents a reasonable investment for small to medium-sized breweries.

Quality control: Smaller batches enable better quality control and attention to detail.

How much space is required for a 1500L beer brewery?

The space required for a 1500L beer brewery depends on various factors, including the layout of the equipment, additional storage areas, and the workspace for the brewers. Generally, it will require a few hundred square meters or more, depending on the specific setup and any future expansion plans.

Can the brewery be customized to suit specific brewing requirements?

Yes, most breweries can be customized to suit specific brewing requirements. Breweries can choose different vessel configurations, automation levels, and additional features based on their brewing process and goals.

How long does it take to brew a batch of beer with a 1500L brewery?

The time required to brew a batch of beer varies depending on the recipe and the specific brewing process. Typically, the entire brewing process, including mashing, boiling, cooling, and fermentation, can take around two to four weeks.

What kind of technical support is provided when setting up a 1500L beer brewery?

Reputable equipment suppliers often provide technical support during the setup process, including assistance with installation, training for the brewing team, and ongoing support for troubleshooting or equipment maintenance.

What other equipment is needed besides the brewing vessels?

In addition to the brewing vessels, a 1500L beer brewery may require other equipment such as a mill for milling the malt, a glycol chiller for temperature control during fermentation, yeast propagation equipment, kegging or bottling lines for packaging, and a control system to manage the brewing process.

Can the brewery be upgraded to increase production capacity in the future?

Yes, most breweries can be designed with expansion in mind. Brewers can plan for future growth and add more vessels or larger equipment when needed to increase production capacity.
