WEMAC 10BBL Craft Beer Brewery Lab pilot Equipment And System Hot Sell In North America
- * Processing : Fermenting Equipment, Beer Brewing
- * Brand : WEMAC
- * Condition : New
- * Material : SUS 304 316
- * Place of Origin : Weifang, China (Mainland)
- * Control system : AUTO/MANUAL
- * Warranty : Within 24 months against the date of B/L
- * Voltage: : To Be Determined (220V/ 380V/ 415V)
- * Processing : Fermenting Equipment, Beer Brewing
- * Brand : WEMAC
- * Condition : New
- * Material : SUS 304 316
- * Place of Origin : Weifang, China (Mainland)
- * Control system : AUTO/MANUAL
- * Warranty : Within 24 months against the date of B/L
- * Voltage: : To Be Determined (220V/ 380V/ 415V)
10BBL Brewery Lab Equipment product advantage
● WEMAC supply beer brewing system with turn-key project.
● WEMAC provide beer equipment with free consultation,3D design,free installation,training.
● Three years warranty for the main equipment and spare parts.
● WEMAC beer machine brew different flavors of beer and several flavors of beer at the same time.
WEMAC beer machine has beautiful appearance, it is convenient for customer visiting.
10BBL Brewery Lab Equipment application scope
Small and medium breweries, regional breweries,bars, hotels, beer houses, restaurants, clubs, farm breweries etc.
TAGS
WEMAC craft beer brewery equipmentWEMAC 10BBL craft beer brewery systemWEMAC 10BBL Beer brewery lab equipment hot sell inWEMAC 10BBL Craft Beer Brewery Lab pilot Equipment
10BBL Brewery Lab Equipment product advantage
● WEMAC supply beer brewing system with turn-key project.
● WEMAC provide beer equipment with free consultation,3D design,free installation,training.
● Three years warranty for the main equipment and spare parts.
● WEMAC beer machine brew different flavors of beer and several flavors of beer at the same time.
● WEMAC beer machine has beautiful appearance, it is convenient for customer visiting.
10BBL Brewery Lab Equipment application scope
Small and medium breweries, regional breweries,bars, hotels, beer houses, restaurants, clubs, farm breweries etc.
10BBL Brewery Lab Equipment basic information
Output capacity:10BBL
Area request:30㎡
Building height requirement:3M
Power supply:Single Phase/ 220(110, 240…)v/50(60)Hz
3phase/380(220, 415,440…)v/50 (60)Hz
Note: 1hl=100liter; 1Gallon=3.7854liter; 1BBL(Barrel ) =117Liter
10BBL Brewery Lab Equipment technology configuration
| No. | Name | Composition | Specification | Technical parameter |
| 1 | Milling System | Malt Miller | 300kg/H | Double roller |
| Carbon steel spray paint/Stainless steel | ||||
Power:1.5Kw | ||||

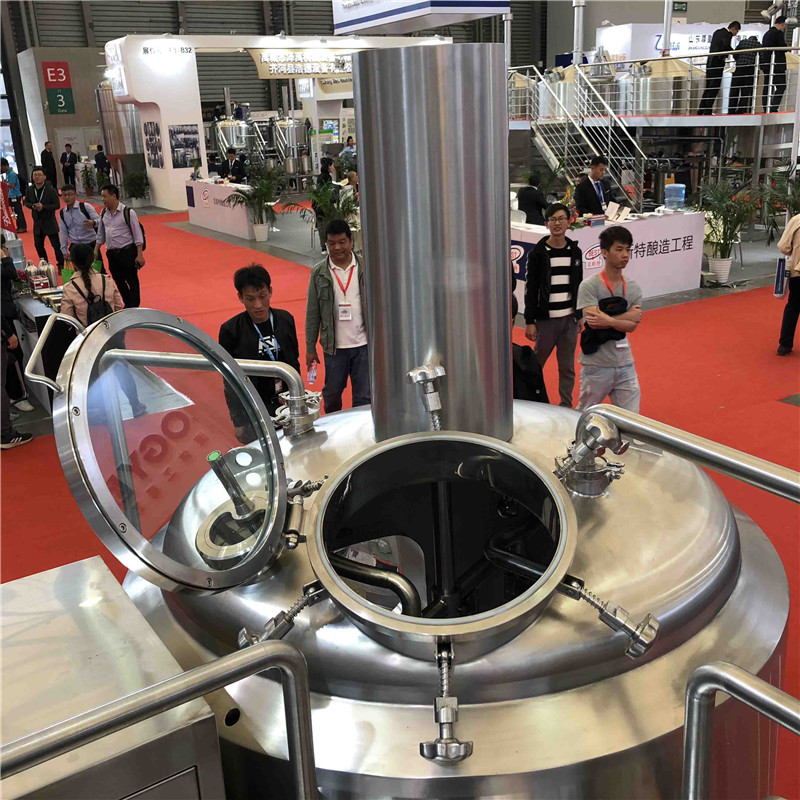

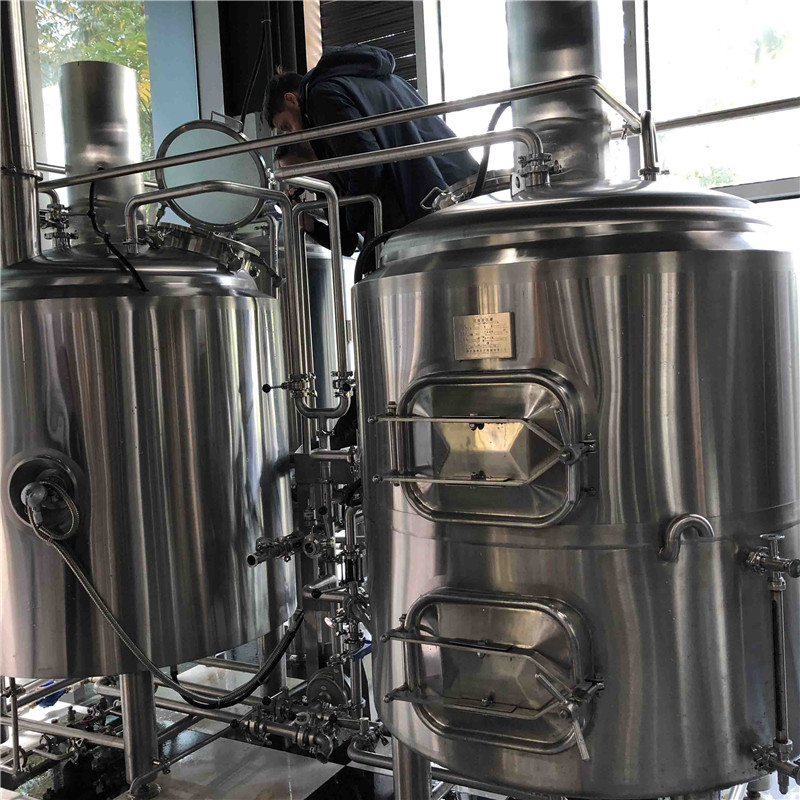

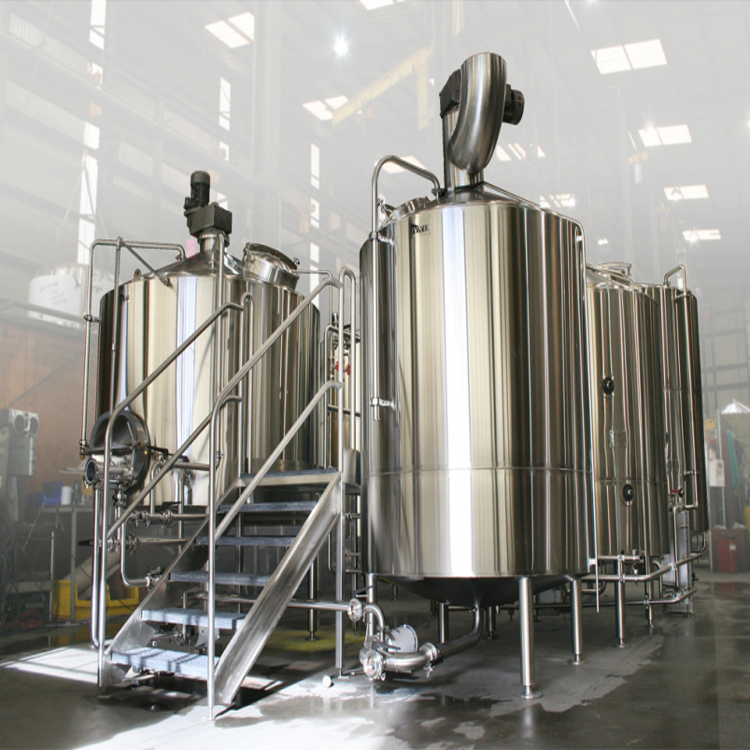

| 2 | Mash system | Mash/Kettle Tun | 10BBL | Material:SUS316L/SUS304/copper |
| Interior Shell: 2B/mirror plate; TH=3mm Exterior Shell:2B/mirror/brushed plate; TH=2mm | ||||
| Dimple, coil jacketed for steam heating,electric heating tube,combustion chamber | ||||
| ABB stirring motor | ||||
| 80mm rock wool for insulation | ||||
| Round glass manhole, dish head,with temperature sensor,cleaning tube, standard Washing ball, cleaning pipeline ISO32 | ||||
| Lauter/Whirlpool Tun | 10BBL | Material:SUS316L/ SUS304/copper | ||
| Interior Shell: 2B/mirror plate; TH=3mm Exterior Shell:2B/mirror/brushed plate; TH=2mm | ||||
| 80mm rock wool for insulation | ||||
| Lauter tun with round glass manhole,side mounted grain outdoor with spent grain chute,sampling valve,sight glass | ||||
| Lauter plate: milling | ||||
| Racking device,positive turn cultivating spent grain,reverse discharging spent grain | ||||
| Tangential whirlpool inlet | ||||
With cleaning tube, with standard washing ball,cleaning pipeline ISO32 | ||||
| Hot liquid tank | 10BBL | Material:SUS316L, SUS304,copper | ||
| Interior Shell: 2B/mirror plate; TH=3mm Exterior Shell:2B/mirror/brushed plate; TH=2mm | ||||
| 80mm rock wool for insulation | ||||
| Top dish head, bottom conical head, round glass manhole | ||||
| Dimple, coil jacketed for steam heating,electric heating tube, combustion chamber | ||||
With a cleaning tube, with a standard wash ball, cleaning pipeline ISO32, overflow port,temperature sensor | ||||
| Heat exchanger | SUS304,Two stage cooling | |||
| Wort oxygenator | SUS304, venturi principle with sight glass | |||
| Yeast Adding Tank | 10L | With valve, sight glass, pipe fittings, hand-held thermometer, display instrument, etc | ||
| Wort pump | China top brand, Sanitary SUS304 | |||
| Hot liquid pump | China top brand, Sanitary SUS304 | |||
| Pipe and fittings | As design | Completely SUS304,including platform and steps | ||
| 3 | Energy system | Steam heating Direct fire heatingElectricity heating | ||

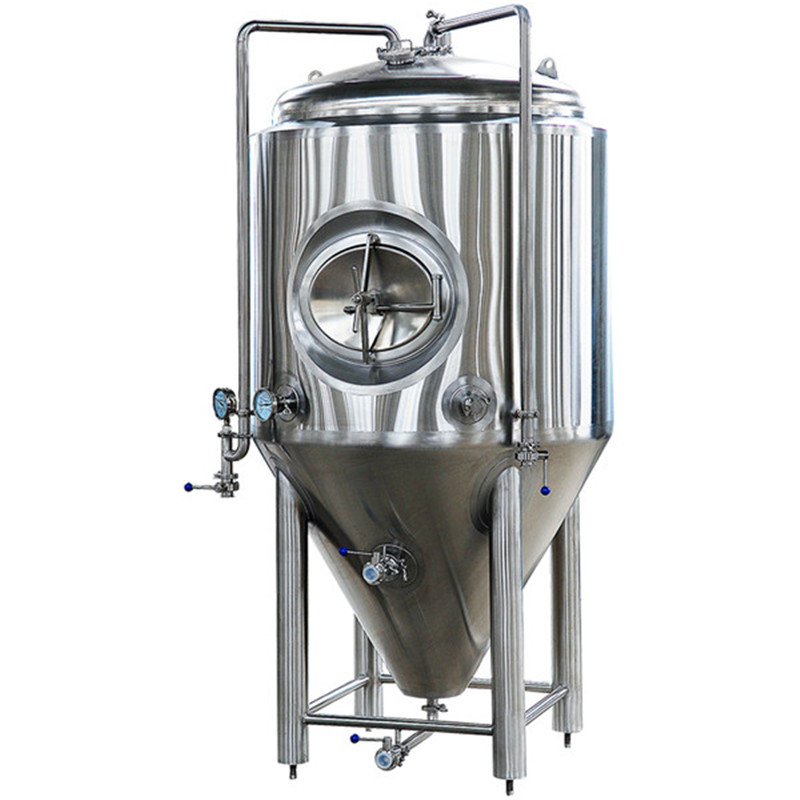

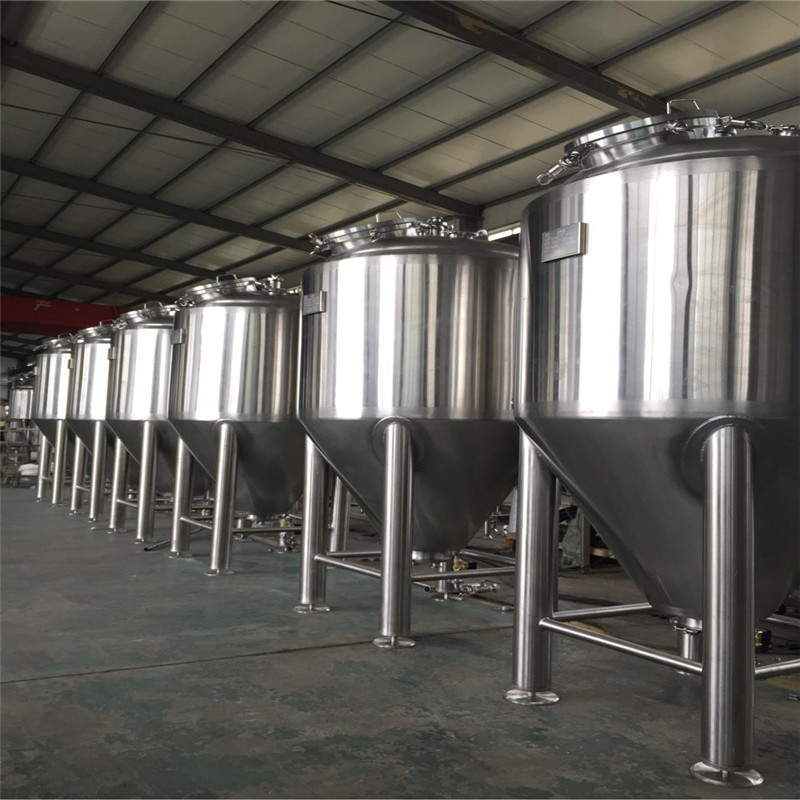

| 4 | Fermentation system | Fermenter | 10BBL | Material:SUS316L /SUS304 |
| Interior Shell: 2B/mirror plate; TH=3mm Exterior Shell:2B/mirror/brushed plate; TH=2mm | ||||
| 80 mm PU for insulation | ||||
| Dish head,cylinder,60 degree cone bottom(adjustable) | ||||

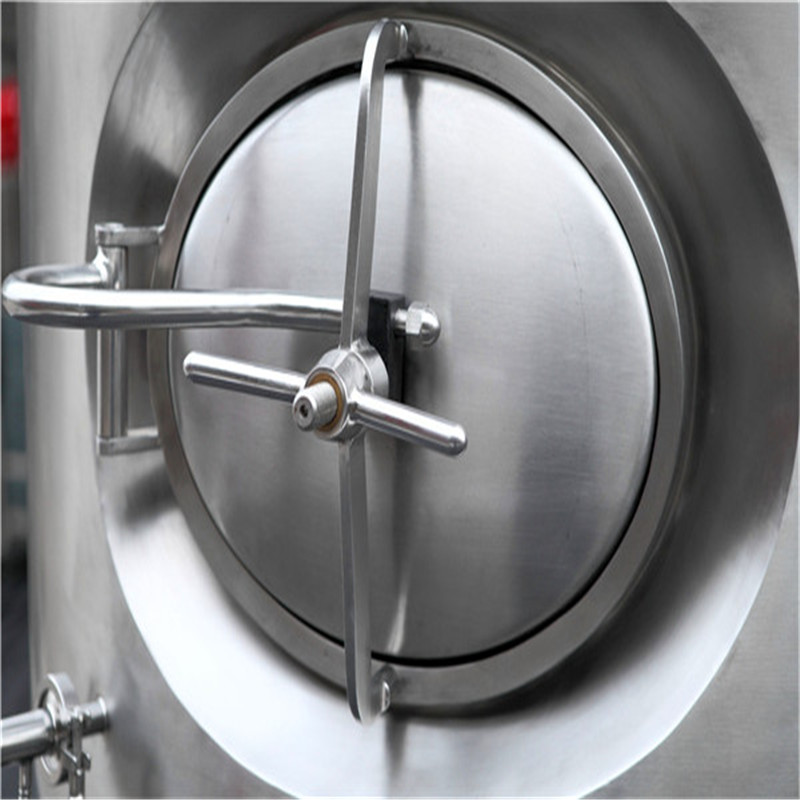

| Top or side manhole, | ||||
| With electromagnetic valve or mechanical pressure regulating valve,sample valve,temperature sensor, adjustable leg,Rotating beer mouth, discharging outlet.CO2 outlet,coolant inlet and outlet,CIP inlet and outlet,wort inlet and yeast outlet,cleaning ball, pressure gauge | ||||

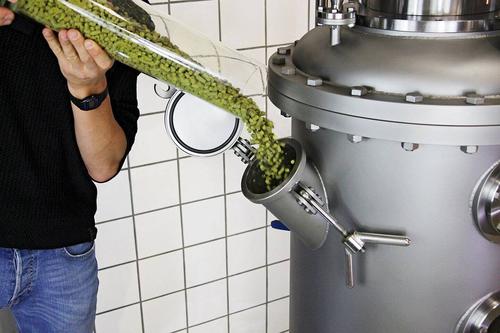

| Option:Dry hop mouth,CO2 filling device With titanium rod distributor;level gauge | ||||
| 5 | Filtering system (optional) | Candle diatomaceous earth filtration | 1000kg/hr | Power:1.8Kw |
| Filter Area: 1M2 | ||||
SUS304 | ||||
| 6 | Fermentation system | Bright beer tank | 10BBL | Material:SUS316L or SUS304 |
| Interior Shell: 2B/mirror plate; TH=3mm Exterior Shell:2B/mirror/brushed plate; TH=2mm | ||||
| 80 mm PU for insulation | ||||
| Dish head /bottom,cylinder | ||||
| Top or side manway | ||||
| With electromagnetic valve or mechanical pressure regulating valve,sample valve,temperature sensor, adjustable leg,Rotating beer mouth, discharging outlet,coolant inlet and outlet, CIP inlet and outlet,wort inlet,cleaning ball, pressure gauge | ||||
| 7 | Cooling system | Chiller | 5Px1PCS | Cooling Capacity: 6364Kcal |
| Installed Power:4.86kw | ||||
| Refrigerant: R22 | ||||
| Noise:70-80db | ||||
| Coperland compressor | ||||
| Ice Water Tank | 2000L | Insulated conical top and sloped bottom | ||
| Ice water pump | 3M3 | Sanitary SUS304, VFD control | ||
| Pipeline and fittings | As designed | SUS304 | ||
| 8 | Control system | Mashing and fermentation process Controlling | Floor type | Panel instrument digital |
PLC control with touch screen for special | ||||
| 9 | CIP System | Acid Tank | 100L | SUS304 |
| Alkali Tank | 100L | SUS304 | ||
| CIP Pump | 3M3 | Flow:3T Lift:24 | ||
| 10 | Filling system | Keg Washing machine | 40-60kegs/hr | Double Station Keg Rinser |
| Heating: Electric, Power: 15kw(steam for optional) | ||||
| Keg filling machine | 30-40kegs/hr | Single Station Keg Filler | ||
| Input Power: 0.1 kw | ||||
| Bottling line | 400-500 bottles/hr | Manual,8 heads | ||
| Can line | ||||
| 11 | Option | Can be Customized | Malt-Silos | |
| Malted tank | ||||
| Auger system | ||||
| Beer pasteurizer |
