China complete brewery equipment for sale turnkey beer brewing system WEMAC Y073

China complete brewery equipment for sale turnkey beer brewing system WEMAC Y073

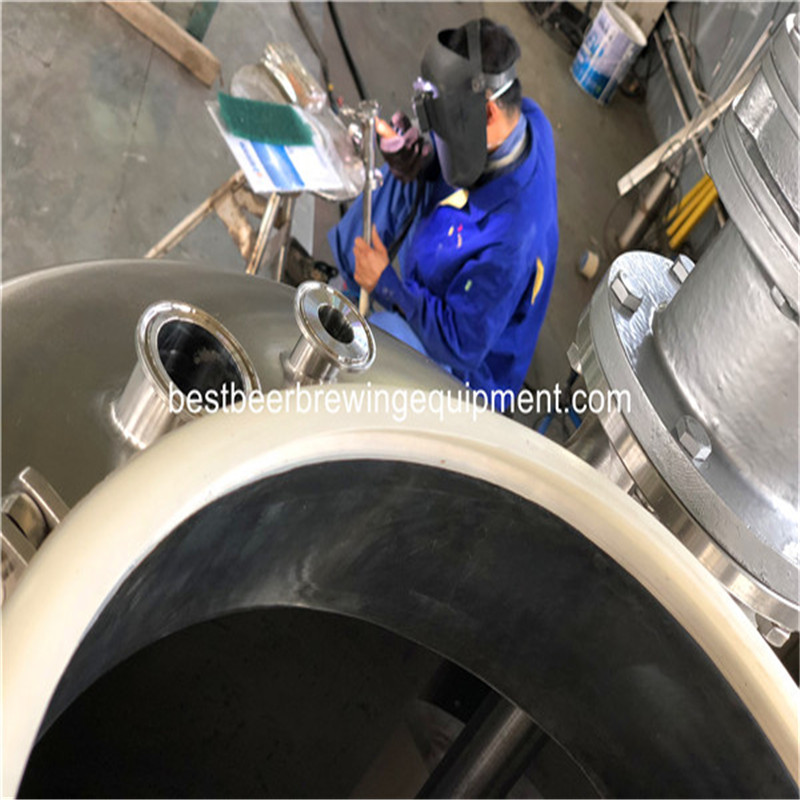

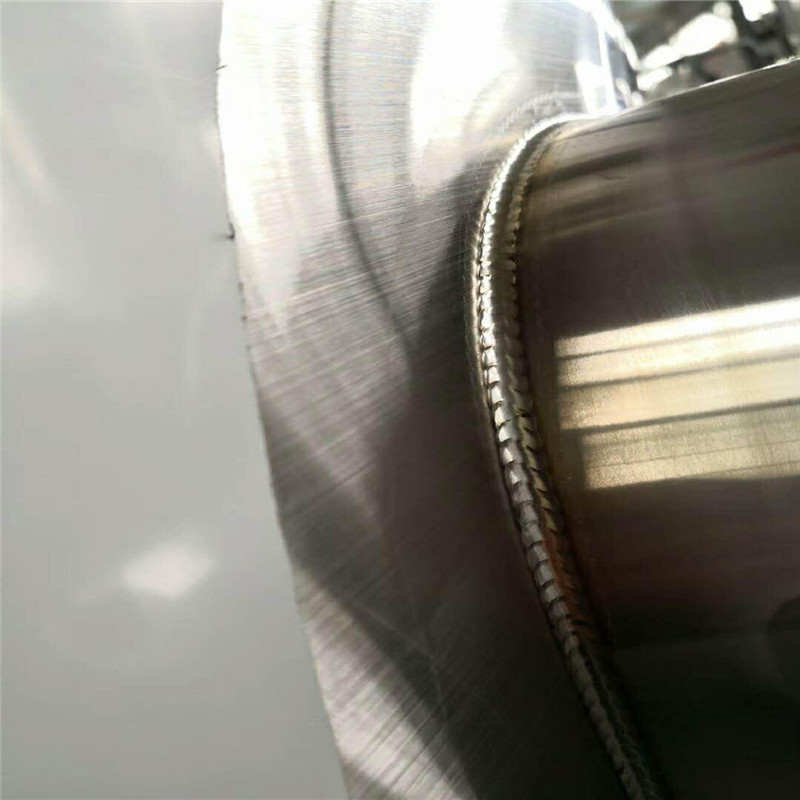

2B surface inside the tanks, pickling and passivation treatment, fine treatment of weld seam,

no deformation and deformation; external surface drawing treatment, beautiful appearance of equipment,

piping layout, opening position, etc. to meet the operation requirement, on-site installation and visit.

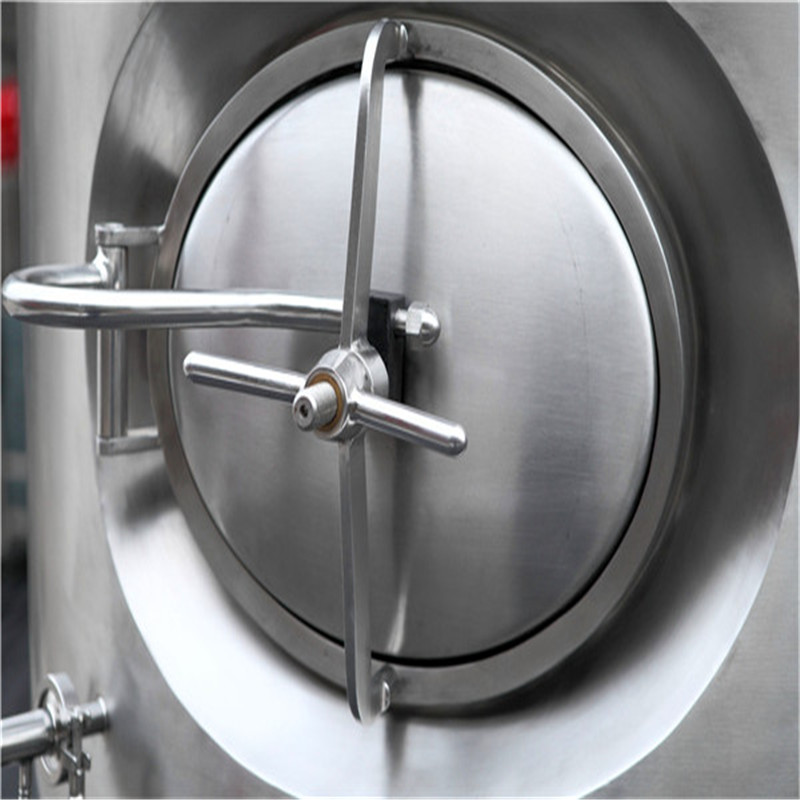

Round glass manhole, butterfly head.

With a cleaning tube, with ball washing, cleaning pipeline ISO32, integrated light mirror.

Optional: multi-nozzle steam condensing device.

Fermentation to be automation

Imported brand PLC and 10-inch large-screen touch screen joint control

A special fermentation process with two-stage heat and three-stage cool;

Different fermentation curves can be preset for different beer to satisfy different fermentation processes.

The program can realize the setting of any cooling rate within 2-24 hours, to prevent ice in the tank and protect the yeast, and to meet the normal fermentation mechanism.

Also can be achieved without fermentation fermentation process.

The fermentation temperature, time, and cycle of each stage can be arbitrarily set and modified.

The system capacity to meet a fermentation cycle. The system collects data once every 20 minutes and summarizes it. It can record all data in a fermentation cycle.

The inner material is SUS304, 3mm thick, and the outer material is 2mm thick;

Steam heating; coil jacket, pressure resistance 2.5-3bar.

Heating meets the temperature rise of 1-1.5 degrees/min;

Thermal insulation rock wool, insulation laminate thickness of 80-100mm.

More than 40% of the air capacity.

The speed of the stirring motor is 30r/min.

The lower part of the stirring shaft is supported by a bushing.

The upper part of the pot has a seal to prevent steam from leaking from the shaft.

we believe our brewery equipments are in high performance-price ratio.

We are the manufacturer since 1958,we have already 61 year history.

High Quality and perfect after-sales service are our life.

We have very experienced engineers and workers in our factory.

Most of them have 20 years work experiences in our factory.

And our Enger.Li have 30 years experiences.

Our factory have two workshop,and we manufacture two parts,

pharmaceutical equipment and beer equipment.

We produce beer equipment by the pharmaceutical equipment production standard.

Welcome your inquiry!
