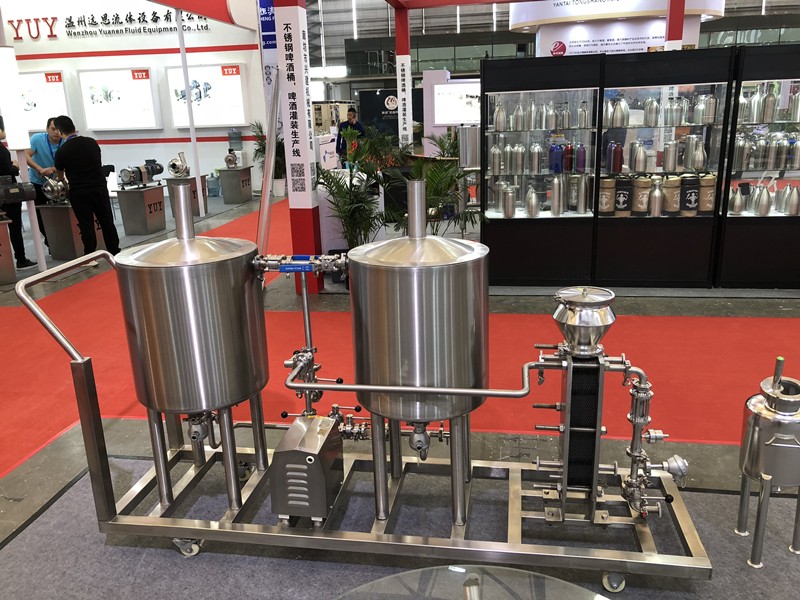

50L Small mini size craft beer brewing making machine home using brewery system Chinese manufacturer

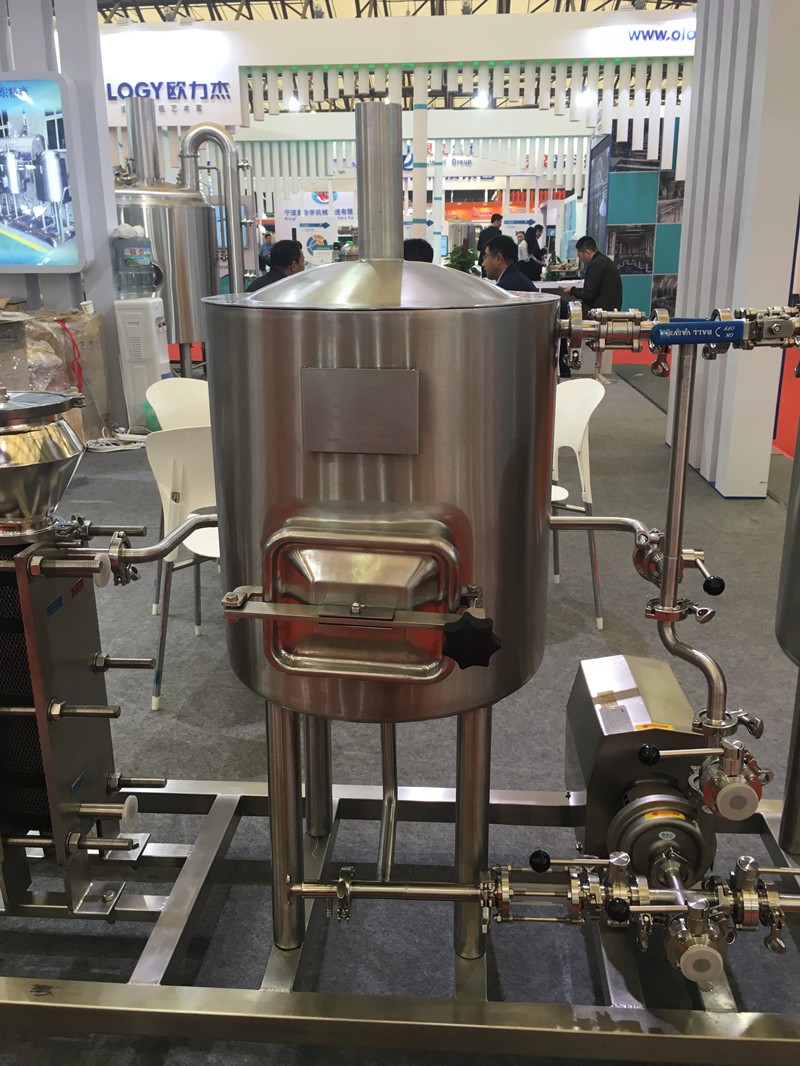

Mash & lauter tank

1、Inner shell is made of SUS304,thickness is 2.5mm，Cladding thickness is 1.5mm                                                                          2、Electric heating, 1-1.5℃/min,elliptical manhole, butterfly head

3、Heat-resisting polyurethane foam is used for keeping warm,thickness is 80mm

4、Full capacity of lauter part is 60L

5、Heat-resisting polyurethane foam is used for keeping warm for lauter part,thickness is 80mm

Boiling and whirlpool tank

Feed on the top of the filter, inlet and flush filter on the same level.The upper 2 root into the tube, one for reflow and wash the worse.Internal bad washing device adopts double umbrella flow plate form, a second washing pipe, used to wash lauter tank, washing ball confirm with  ISO standard.

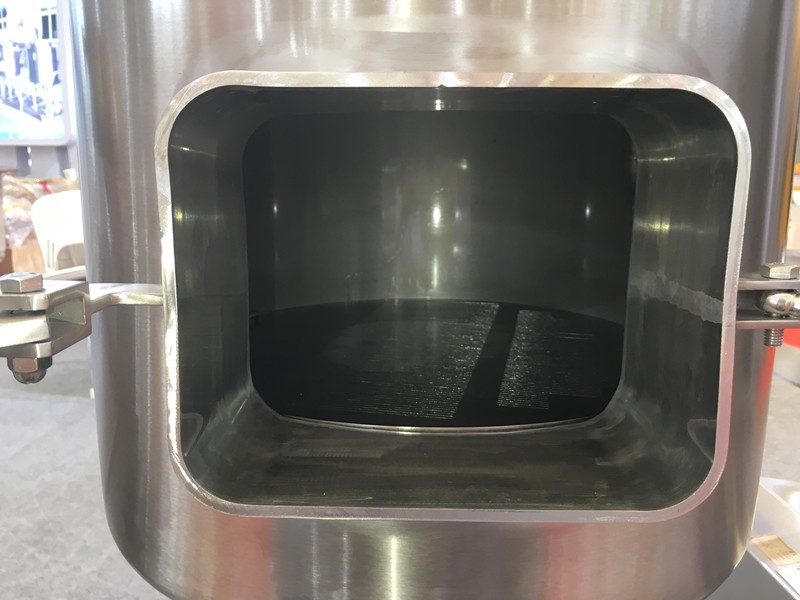

Upper lauter with oval endoscopic manhole side out of the discharging mouth;Butterfly tank bottom, lauter out main belt audition and health sampling valve, sight glasses level installation;And the suction lauter,natural lauter can realize , natural filtering can synchronize when washing.

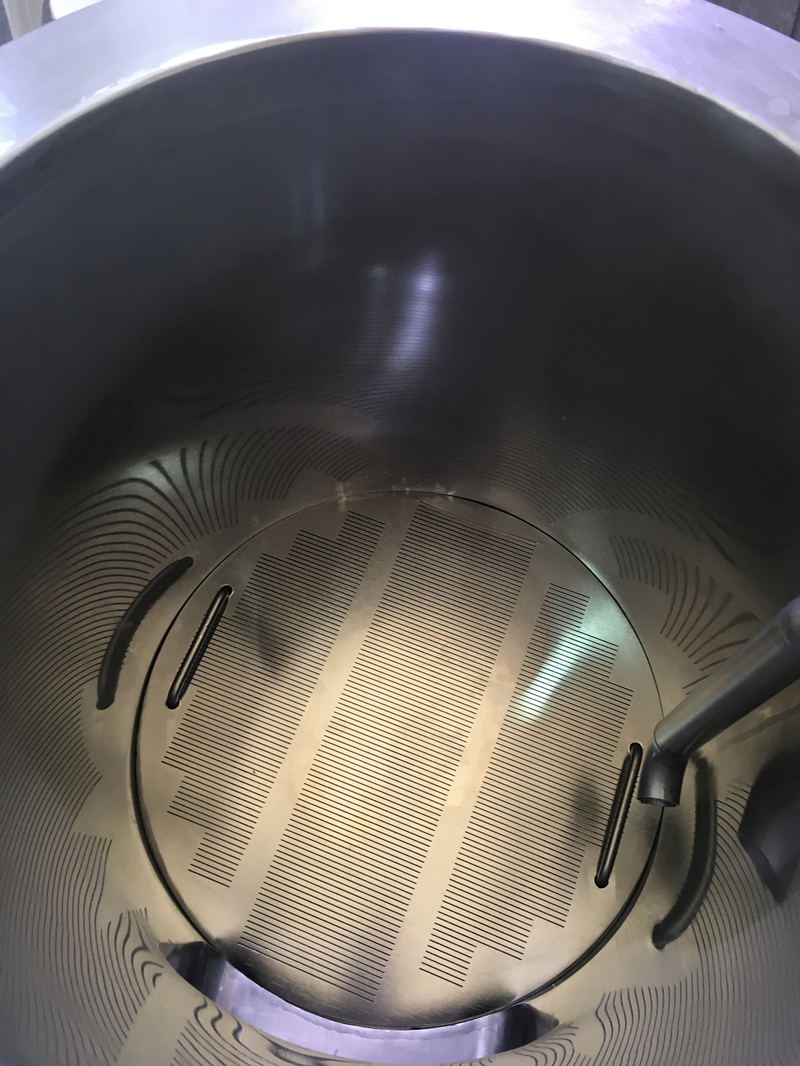

Filter plate: milling.Material:SUS304, opening rate is about 10%;Surface light, smooth;Local can open, convenient cleaning, the use of deformation;Filter plate and the distance between the bottom of the pot between 2 to 5 cm, at the bottom of the tank with the cleaning device, uniform not less than three.

The thermometer meter is digital display.The precision of platinum thermal resistor is ±0.3℃ .The temperature range is from 1℃ to 120℃

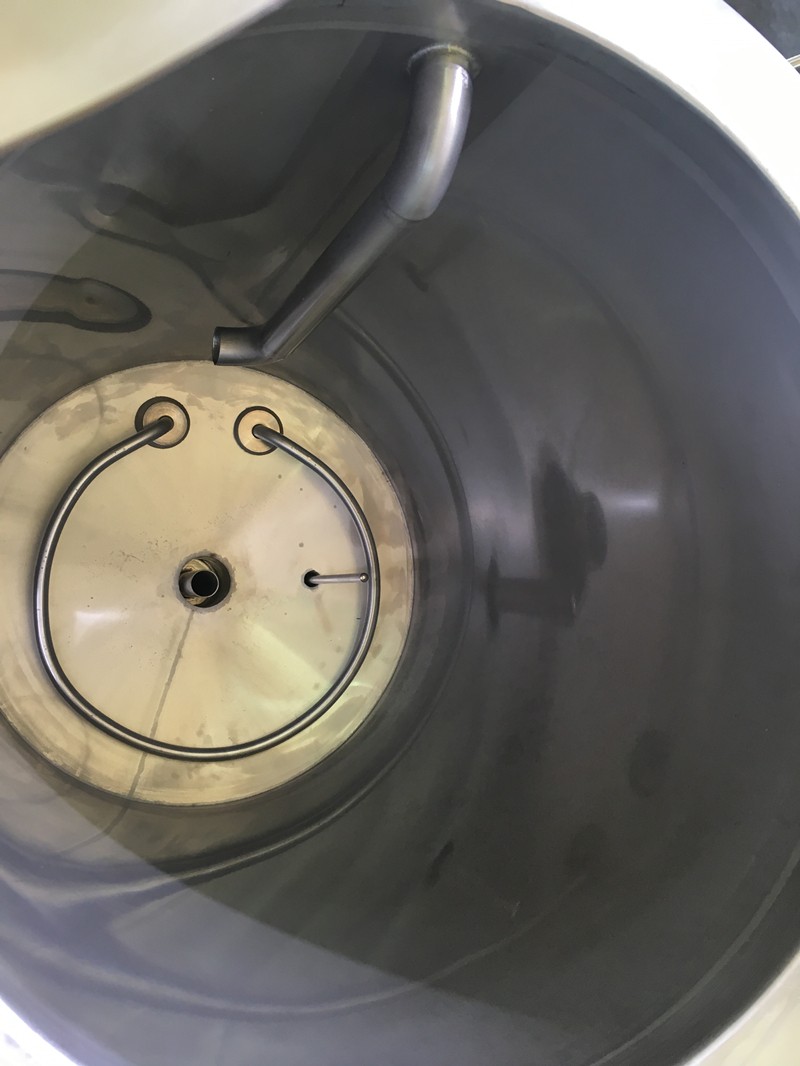

Equipped with cleaning tube, wash ball confirm with ISO standard.

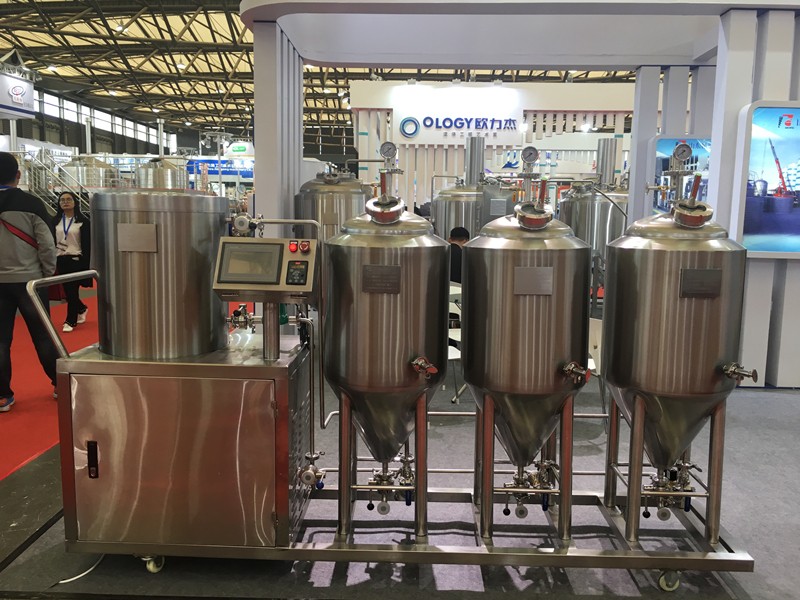

PLC and touch screen control,Refrigerator

1、Realize special fermentation that is two warming segments, three sections of cooling ;

2、According to different beer can set different fermentation curve, to meet different fermentation technology.

3、Achieve 2-24 hours any cooling speed setting,

thereby preventing ice tank and protect the function of the yeast, and meet the normal fermentation mechanism.

4、No duty for fermentation inspection

5、Temperature, time and cycle can be arbitrarily set and modified6、System capacity meet a fermentation period.

System once every 20 minutes  collect data and summary,record all data of a fermentation cycle.

7、Traceability.

8、The accuracy of error is plus or minus 0.3 ℃.

Full capacity of lauter part is 60L ,Filter plate: milling.Material:SUS304, opening rate is about 10%;Surface light, smooth;Local can open, convenient cleaning, the use of deformation;Filter plate and the distance between the bottom of the pot between 2 to 5 cm, at the bottom of the tank with the cleaning device, uniform not less than three.
