3BBL 5BBL fresh bar beer brewing breweries system suppliers ZXF

3BBL 5BBL fresh bar beer brewing breweries system

WEMAC offers beer brewing equipment designs to ensure that optimal efficiency is achieved while including all requirements that a customer may have (such as spacing, tank distribution, etc.) Producing a high quality beer requires consistent brews and although experience plays a crucial rolein the process, the limiting factor is the quality of the Brewhouse being used. Having a high quality Brewhouse will ensure that you have the necessary tools to keep the same flavor profile with every batch!

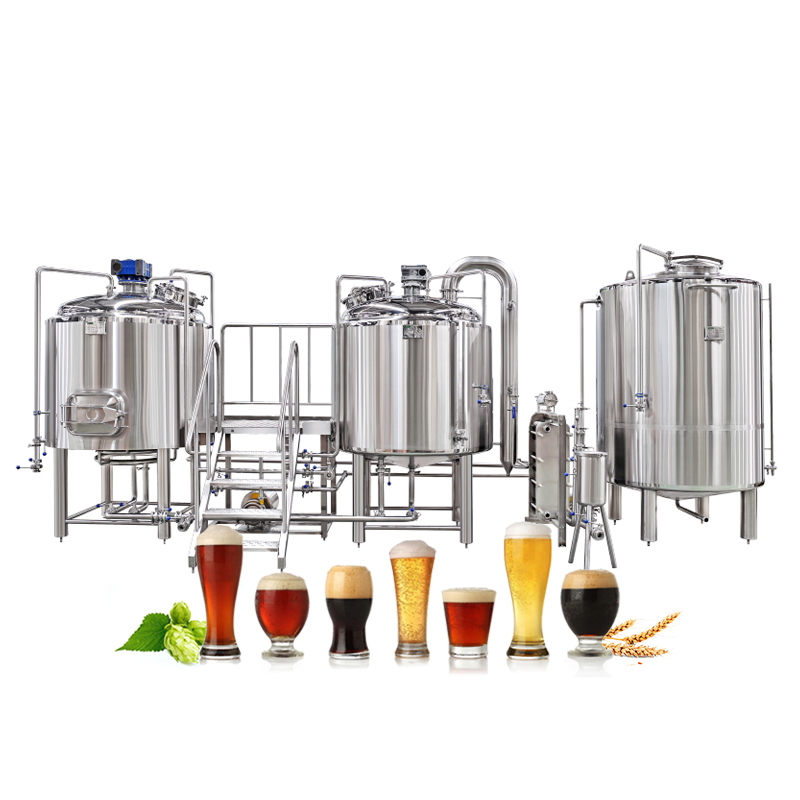

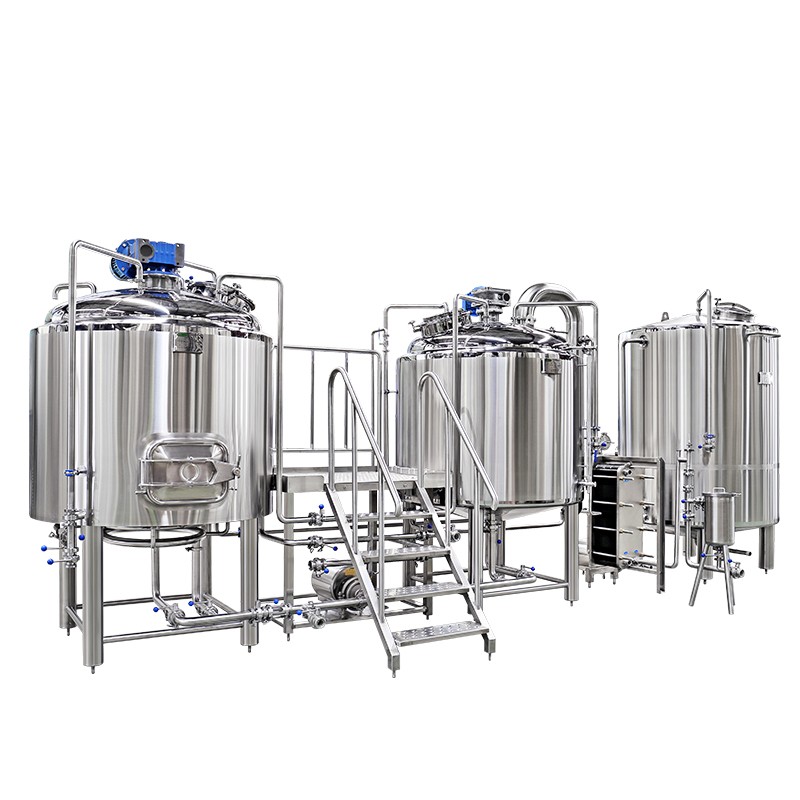

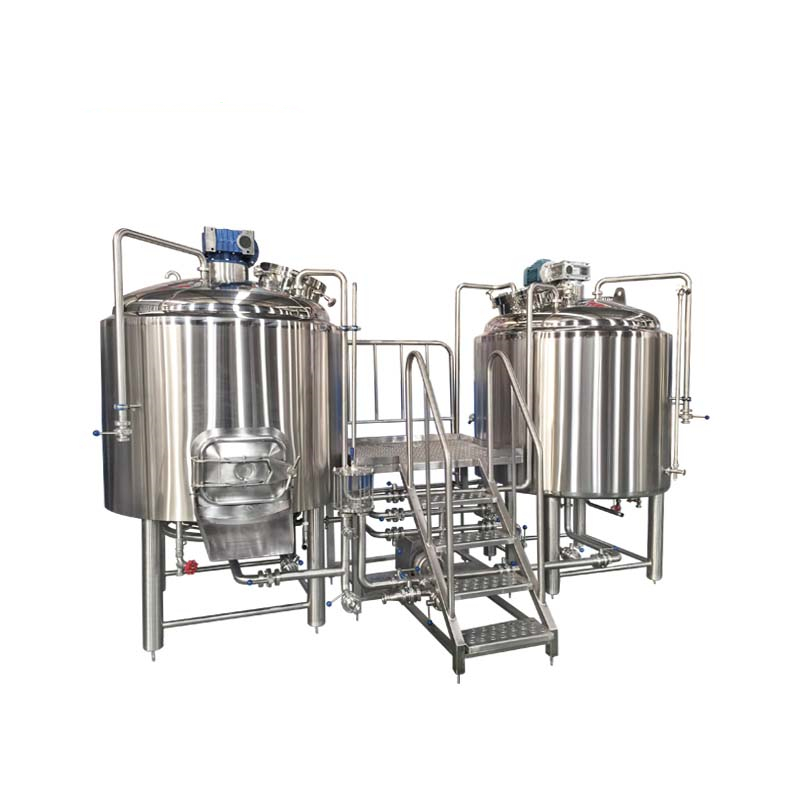

The following is the small beer brewing system project of 3BBL 500L hotel and bar provided by WEMAC for customers.

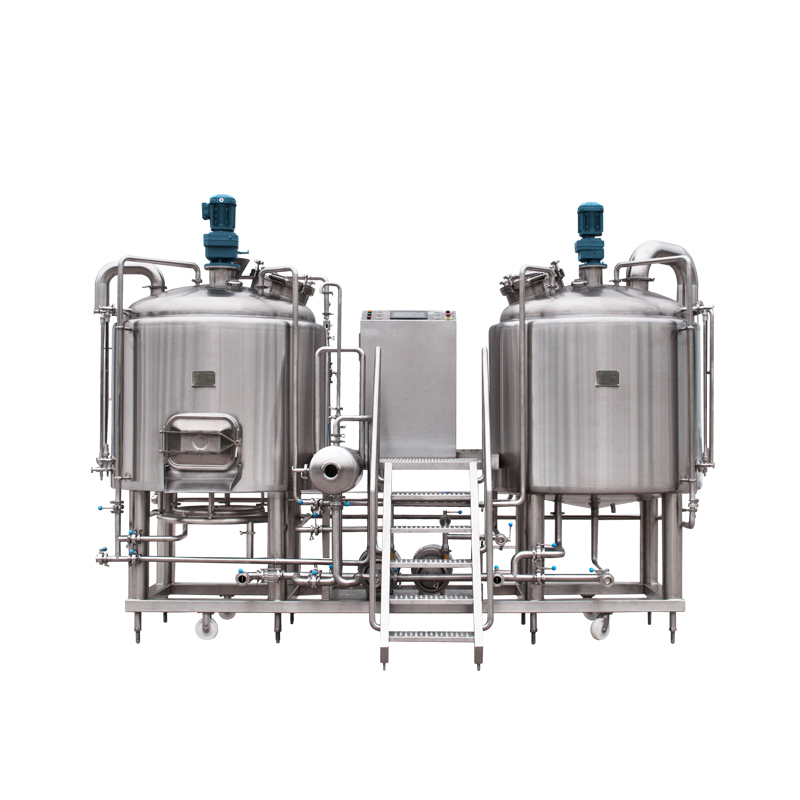

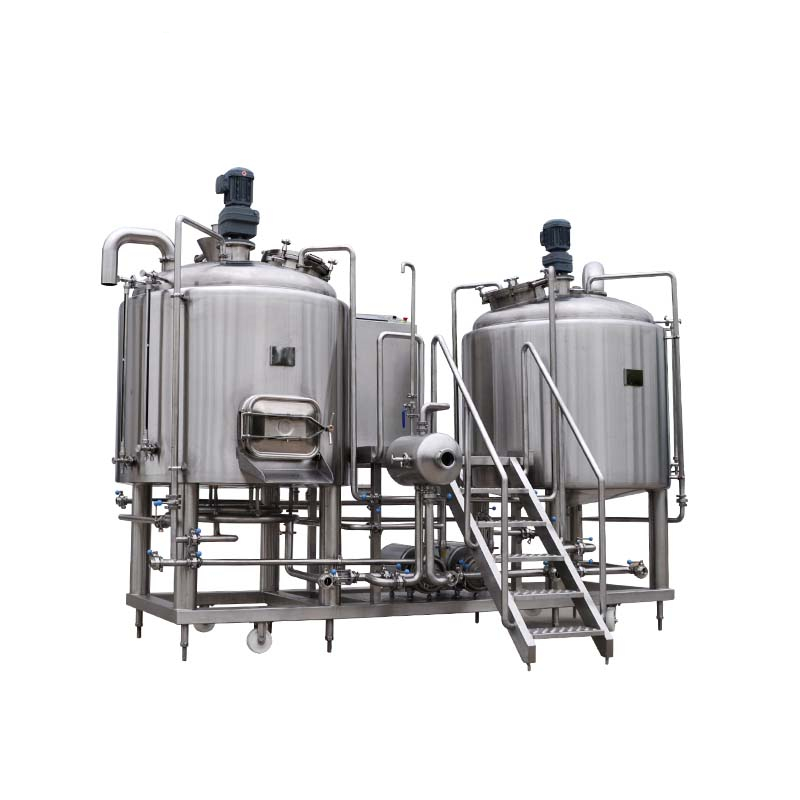

Mash Lauter Tuns + Kettle Whirlpool tanks.Two-vessels craft beer brewhouse with the hot liquor tank,

1) Gross capacity: 625L; Useful capacity: 500L;

2) SUS 304;Interior:3.0mm;Exterior:3.0mm;

3) Insulation PU:80mm;

4) Internal mirror polishing;

5) 2 vessel design

Fermentation tanks are where the magic happens. It’s important to have a precisely built vessel to condition your beer as it ferments. WEMAC Craft offers fermentation tanks with ultra-precise welding and polishing, complete traceability, and material exactness to meet all international safety standards. From small, pub-size fermenters to towering outdoor tanks, we have the manufacturing capability and expertise to custom-build fermentation tanks of all sizes.

1) Gross capacity: 625L; Useful capacity: 500L(4Units);

2) SUS 304;Interior:3.0mm;Exterior:2.0mm;

3) Insulation PU:80mm;

4) Internal mirror polishing

5) 60°cone design

In order to facilitate the movement of customers in the bar, the whole system is welded in a stainless steel square tube with rollers at the bottom. Before leaving the factory, WEMAC will conduct a full range of tests on the equipment, including the control system, leakage of valve pipes, and the inspection of the polishing accuracy of the inner and outer surfaces.

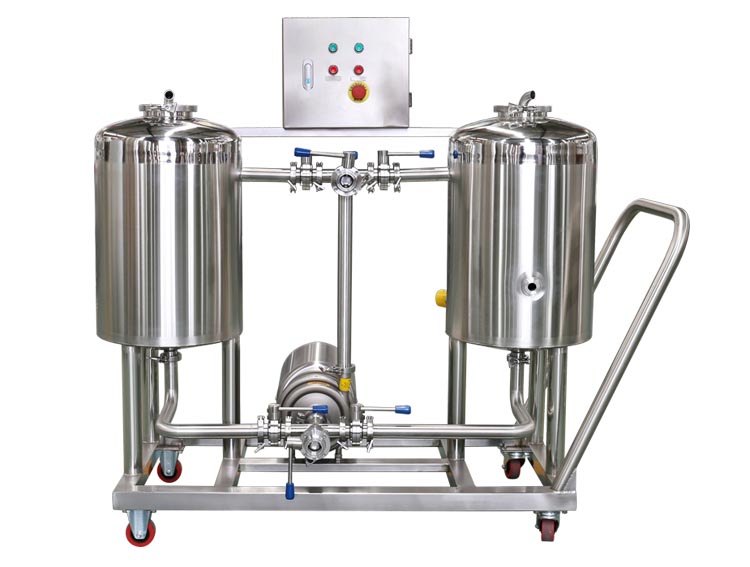

CIP System

This system consists Disinfection Tank and Alkali Tank:
1) Volume:50L;
2) Sanitary 304stainless steel;
3) Thickness: 2.0mm;

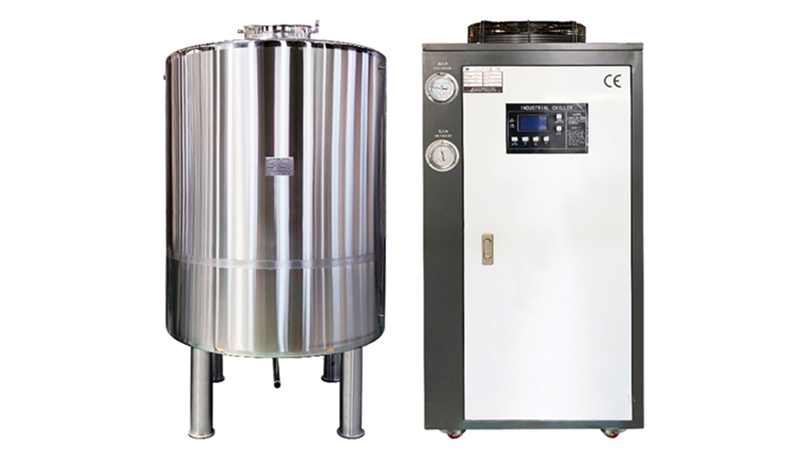

Cooling system

1) Glycol Tank:
~Gross volume:1500L;
~Jacket thickness: 3.0mm; outer thickness: 2.0mm;
~Insulation PU: 80mm;

2) Chiller:
~Copeland compressor;
~Model type:5P;
~Refrigerant: R404A;

For the on-site pipeline layout, the size and shape of the tank can be customized to meet the convenience of brewing in the bar.

WEMAC is the leading Beer Craft Brewing equipment supplier in China, our service include the brewing tanks design, equipment manufacture,Installation at site and beer brewing technology transfer.

We provide complete beer brewing equipment solutions that include: malt handling system, brewhouse system, beer fermenting/storage system, cooling system, cleaning system, control system, package line act, in a word, we provide One-Stop Shopping service for you.

WEMAC has been exported to more than 20 countries, which include USA,Canada, UK,France,Germany,Holland,Slovakia, Belgium ,Argentina etc. Agents in some countries and can provide customers with on-site installation and commissioning services, as well as on-site brewing teaching and training.
