In the mash tun, the kettle tun will have a large amount of secondary steam in the production process.

When the secondary steam is discharged, some steam will be condensed into condensed water,

which is easy to flow back to the mashing tun or boil along the exhaust pipe.

In the tun, it affects the quality of the mashed wort and ultimately affects the quality of the beer.

In the mash tun, a water retaining ring is formed at the root of the exhaust pipe of the kettle tun to form a water receiving tray,

and the condensed water of the secondary steam is discharged to the outside of the tun

by the condensed water discharge pipe to avoid the influence on the wort, and the secondary steam condensed water is discharged.

The pipe is connected to the water receiving tray at the root of the steam exhaust pipe,

and is passed from the heat insulating layer of the pot body to the lower part of the pot body to discharge

or recycle the secondary steam condensed water, thereby avoiding environmental pollution and recovering energy.

The purpose of energy saving expectations.

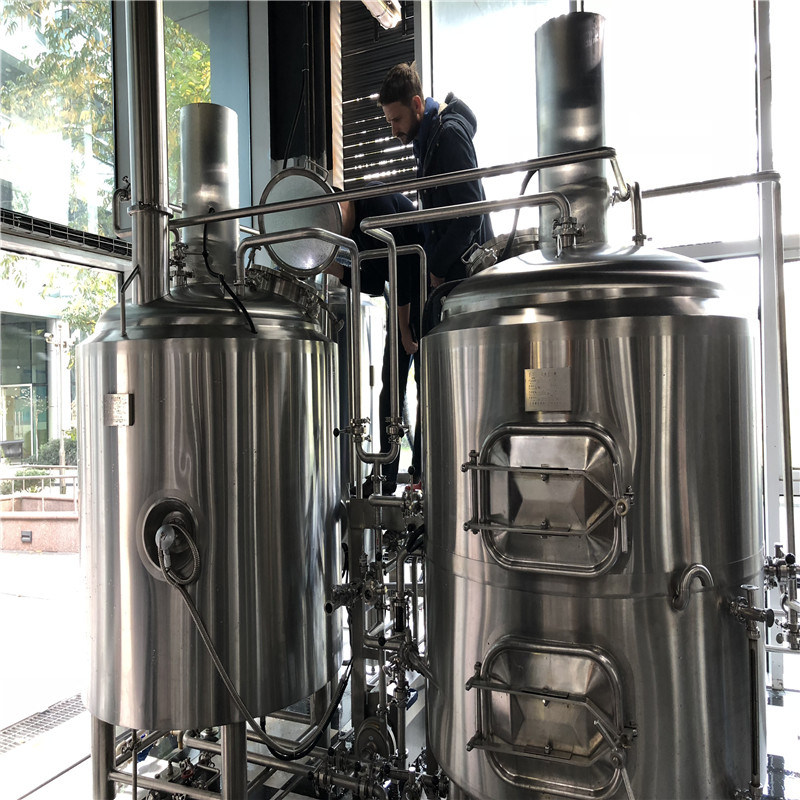

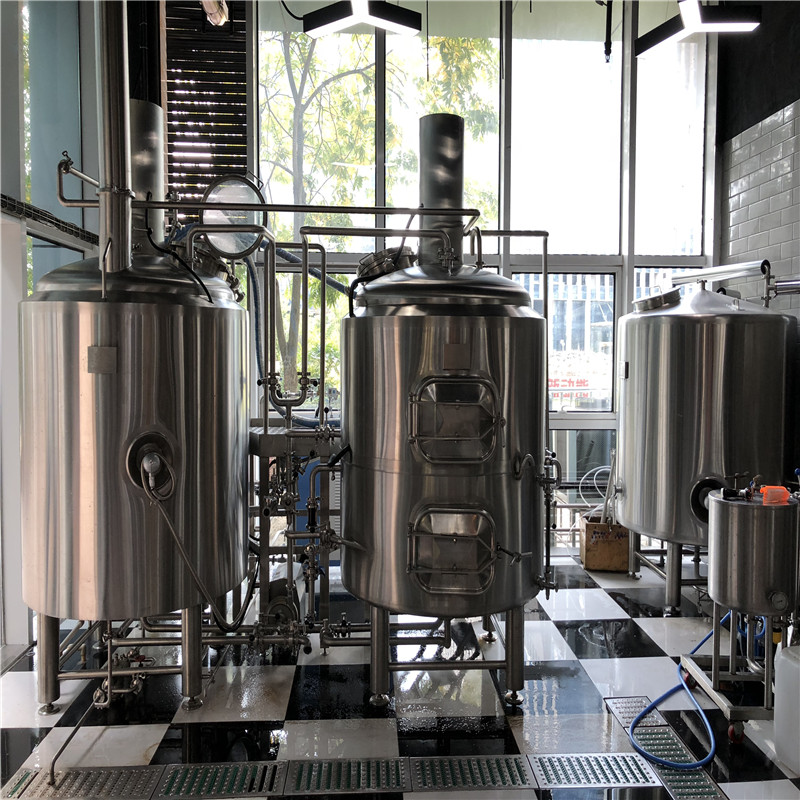

2 Vessel mash system:

Mash/lauter tank+Kettle/whirlpool tank

Combi Vessel mash system:

Lauter(upper)/whirlpool (down)+Kettle

Hot liquor tank (HLT)at customer's request

Usage:Brewery pub/restaurant/hotel

Exterior:Stainless steel or Copper, thickness 2.0mm

Interior:Stainless steel, thickness 3.0mm

Insulation:Rockwool, thickness usually 80mm

Cleaning:CIP arm, 360° spray ball

Temperature :High accuracy temperature sensor, PT100

Cooling:High efficiency plate heat exchanger

Control:Semi-auto/auto control cabinet

Wort ventilate :Sanitary wort aeration device with sight glass,and you can also choose carbon stone

Also with:

Milling V-wire false bottom

With lauter rakes, VFD control

Side spent grain manway

Stainless steel top manway

With tangent whirlpool inlet

Efficient centrifugal wort pump/hot liquor pump

With hops filter for trub collection

Stainless steel plate heat exchanger for wort cooling

Oxigenate with carbon stone

Sanitary stainless steel butterfly valves and pipeline connection
